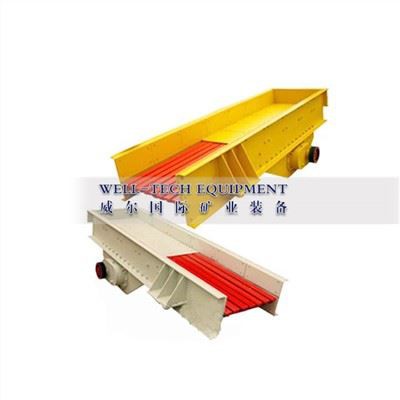

Electromagnetic Vibrating Feeder
[Introduction]: A feeder with simple structure and suitable for non-sticky materials
Transporting materials relying on electromagnetic vibrating; Stepless adjustment feeding.
Feature:
01 Small volume, light weight, simple structure, convenient installation, convenient repair, low operation cost;
02 Adoption the principle of the mechanical vibration, and less energy consumption;
03 Change the volume of flow at any time;
04 Centralized control and automatic control of production process;
05 Small wear of feeding tank;
06 Eccentric block is the source of vibration, low noise, less power consumption, good regulation performance, no blanking phenomenon.
Electromagnetic Vibrating FeederTechnical Parameters
Model | Max Capacity t/h | M | Max Feeding Size (mm) | Double amplitude (mm) | Power (kw) | Weight (kg) |
Horizontal 0° | -10° | |||||
GZ2 | 25 | 35 | 75 | 1.75 | 0.25 | 217 |
GZ3 | 35 | 50 | 85 | 0.35 | 300 | |
GZ4 | 50 | 70 | 100 | 0.45 | 412 | |
GZ5 | 100 | 140 | 150 | 0.65 | 656 | |
GZ6 | 150 | 210 | 200 | 1.5 | 1.5 | 1140 |
GZ7 | 250 | 350 | 250 | 3.0 | 2417 | |
GZ8 | 400 | 560 | 300 | 4.0 | 2985 | |
GZ9 | 600 | 840 | 350 | 5.5 | 3594 | |
GZ10 | 750 | 1050 | 500 | 4.0×2 | 6491 |
